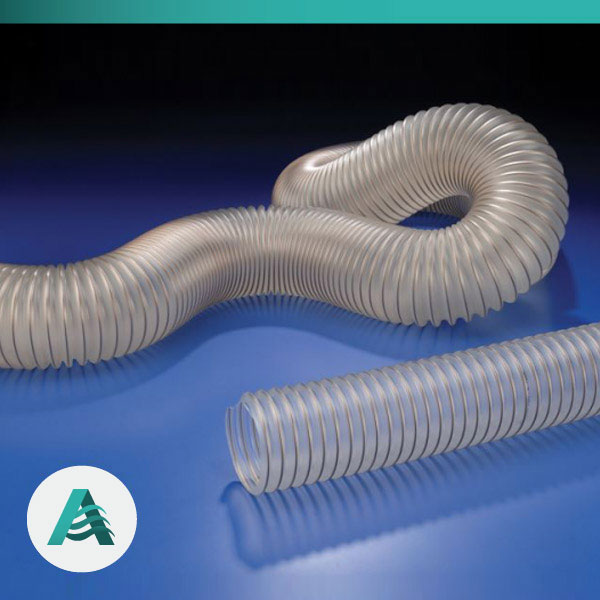

Polyurethane Flexible Hose

Polyurethane Flexible Hose

Price range: $38.46 through $182.40

Quantity is per l/m

Polyester base hose

Application:

This product is suitable for abrasive solids such as dust, powder, granules, fiber, wood chips, oil and fuel etc. Excellent for connection to CNC machines, also ventilation and industrial vacuum cleaner.

Download Technical Specification

SKU: N/A Category:

Description



Material:
Wall: ester-polyurethane
Helix: Spring steel wire

Working Temperature:
-40deg C to +90deg C


Features:

  • Good resistance to chemicals
  • Abrasion proof
  • Small bending radius
  • Steel wire reinforced
  • Gas and liquid tight
  • Compressible 3:1
  • Superior resistance against inside and outside pressure
  • Excellent corrosion resistance
  • Capable of electrostatic discharge
  • Flame retardant to UL94-J=HB
ID OD Length (m/roll) Working Pressure (bar) Weight (g/m)
25 32 20 1.6 170
32 39 20 1.26 200
38 46 20 1.17 230
51 59 15 0.91 320
60 68 15 0.728 390
63 71 15 0.715 400
76 84 15 0.611 530
80 88 15 0.559 560
90 98 15 0.507 590
102 110 15 0.455 620
114 122 15 0.39 700
120 128 15 .377 740
127 135 15 0.364 770
140 148 15 0.325 860
152 160 15 0.221 910
160 168 15 0.208 970
178 186 15 0.182 1070
203 211 15 0.169 1320
254 262 10 0.13 1560
305 313 10 0.117 2040

Additional information

Diameter

102, 127, 152, 178, 203, 254, 305, 51, 63, 80
